Catalog No.4-3

@

@

Definitive edition of Electric hot-air generator !!

Middle pressure Hot-air generator
P-type series


* High speed hot-air that was exhausted conventionally can be circulated by the middle pressure blower
   that corresponded the hot-air circulation is
equipped. So, this is the hot-air generator of the energy
   conservation type.
   This is used to the removing water system at the hot-air circulation type and the improvement of the
   drying oven temp. distribution by combining with TSK-PN nozzle.


@@@

@ ¥ Continuous use max. hot-air temp.  350ßC


¥ Inverter for the air volume is controlled is
    equipped.
(Energy saving !)


¥ Heatproof blower for the hot-air of 170ßC can
    be circulated is equipped to the all type.
(Energy
     saving !)

@
¥ Demi-filter is equipped to the all type.
   And, Demand function is equipped to only
   TSK-72P.

¥ Each safety circuit is built.
(High reliability
       thermocouple is adopted to the each safety circuit.)


      Remote controller and Direction change can  support.

@

@

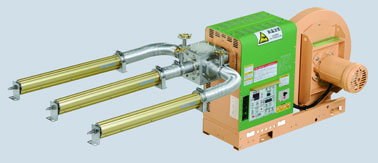

 < Combination example of   Middle pressure hot-air generator and
     TSK-PN nozzle >
   Production of each other is demonstrated to the maximum by these are
    combined.

< Difference of TSK honeycomb block heater and sheathed heater >
@

Specification

  < Common spec. >

  ¥ Max. hot-air temp.  :  350ßC

  ¥ Suction gas temp. : 0 - +170ßC

 ¥ Air volume control  :  Inverter

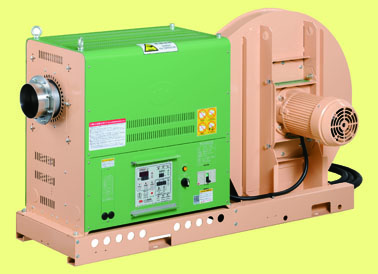

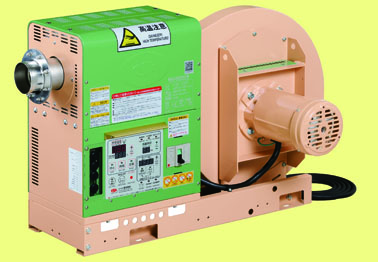

MODEL TSK-24P                                                          MODEL TSK-72P
@

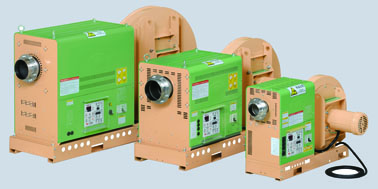

Model Type Power Heater capacity Inlet Outlet Bore Max. air volume
m3^min
Max. static pressure
kPa
Motor capacity Price Delivery
TSK-24P 3200-3C-04PY-LB 3-phase 200V
plus minus 10%
3kW ƒÓ75 4.5 3.4 400W JPY 532,000 D
3200-5C-04PY-LB 5kW
3200-7.5C-04PY-LB 7.5kW
TSK-24PS 3200-3C-1.5PY-LB 3kW 10.2 5.9 1.5kW JPY630,000 D
3200-5C-1.5PY-LB 5kW
3200-7.5C-1.5PY-LB 7.5kW
TSK-56P 3200-9C-1.5PY-LB 9kW ƒÓ125 16.5 5.9 1.5kW JPY966,000 D
3200-12.5C-1.5PY-LB 12.5W
TSK-56PS 3200-9C-2.2PY-LB 9kW 20.1 6.5 2.2kW JPY 1,078,000 D
3200-12.5C-2.2PY-LB 7.5kW
TSK-72P 3200-15C-2.2PY-LB 15kW 20.3 6.5 2.2kW JPY 1,260,000 D
3200-20C-2.2PY-LB 20kW
Delivery  A : Immediate delivery - 3 weeks      B : 1 - 3 weeks     C : 2 weeks - 1 month     D : 1 - 1.5 months     E : 1.5 - 2 months     F : 2 - 3 months
@* Please inquire the evident delivery because the delivery may fluctuate by situation.

@
